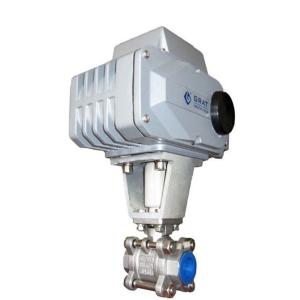

15 Degree V Port Regulation Electric Actuated Ball Valve Straight Through Type

Name: 15 Degree V Port Regulation Electric Actuated Ball Valve Straight Through Type
Brand: GRAT
Price: 1 USD

Quality 15 Degree V Port Regulation Electric Actuated Ball Valve Straight Through Type wholesale

Brand Name : GRAT

Model Number : EV-1002

Certification : IP67,CCC, ISO, CE,CNAS,SIL

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $100.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Media : Water

Material : Stainless Steel

Connection Form : Thread

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : Fixed Ball Valve

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage

Medium : Water, Oil, Gas

Structure : Fixed Ball Valve

Function : Bypass-Valve

Standard : ISO

Input Signal : 4-20mA

Output Signal : 4-20mA

HS Code : 8481804090

Contact Now

15 Degree V Port Regulation Ball Valve with Electric Valve Actuator

Product Description:

15 Degree V Port Regulation Ball Valve with Electric Valve Actuator /IP67/ Fixed Ball Valve

Description:

EV Series Multifunctional Electric Control Valve (including Electric V type Ball Valve and Electric V Type Control Valve)

is a device to regulate flow, pressure, temperature and proportion in the industrial auto-control system

of middle and low pressure, room temperature, which supports the manual operation when the power cut off.

Specification:

Power supply	AC220V 50/60HZ
Body ratings	DN15-100
Medium Temp	≤220°C
Ambient Temp	≤50°C
Operating pressure	PN16, PN25, PN40
Action mode	Switch to cut off
Body connections	Flange type, connecting thread
Body material	Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Plug material	Stainless steel SUS304,SUS316,Carbon steel/ Casting steel WCB
Leakage	Compliance with the standards ANSIB16.104 5
Seal type	Two-sided sphere seal
Applicable medium	Water, oil, gas
Protection level	IP67
Dead zone	0.5%
Repeatability error	0.5%
Manufacturing standards	JB/T8692-1998

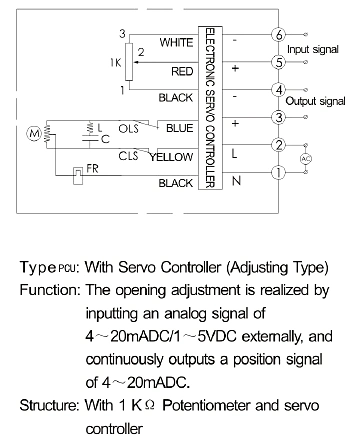

Constrol Diagram

15 Degree V Port Regulation Electric Actuated Ball Valve Straight Through Type

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
