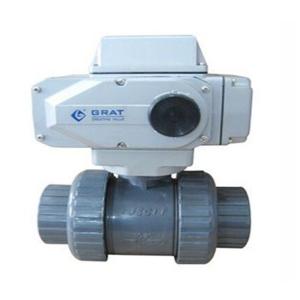

IP67 UPVC Ball Valve V Type Electric Actuated Ball Valve DIN Standard

Brand Name : GRAT

Model Number : EV104

Certification : CCC, ISO, CE

Place of Origin : Wuhan, Hubei, China

Payment Terms : LC, T/T, D/P, PayPal, Western Union

MOQ : 1 pc

Packaging Details : Wooden Carton

Delivery Time : 3 working days

Supply Ability : 1000PCS/Week

Price : USD $170.00/ Piece

Certifications : IP67/CCC/ISO/CE

Type : V Type Ball Valve

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage

Body Ratings : Dn10-100

Action Mode : Switch to Cut off

Body Material : UPVC

Installation Mode : Install It in Any Angle

Structure : Flexible Ball Valve

Function : Relief Valve

Standard : DIN

Power Supply : AC220V \AC24V

Operating Pressure : Pn16

Body Connections : Flange, Inside Thread

Actuator Material : Casting Aluminum Alloy, Plastic Shell

Applicable Medium : Water, Air, Oil, and Corrosive Chemical Liquid

HS Code : 8481804090

Contact Now

UPVC Electric Actuated Ball Valve​ V Type Ball Valve

Product Description:

UPVC Electric Actuated Ball Valve/ IP67 /Relief Valve/V Type Ball Valve

Description:

UPVC Electric Ball Valve is widely applied in the industrial fields of acid alkali and chemical solution.The body with light weight and strong corrosion resistance is widely used in the piping system of pure water and raw drinking water drainage and sewage salt water and sea water.

Specification:

Valve size DN15~DN100
Power supply DC24V,AC220V,AC380V
Temp. -15ºC-60ºC(no congealment)
Ambient temp. -30ºC-60ºC
Body rating 0.1~1.6MPa
Purpose On-off
Action time 4-30S
Applicable medium Water, air, oil, corrosive chemical liquid
End connection Flange, double union
Seal type Soft seat
Shaft material PVC
O-RING material EPDM
Ring nut material PVC
Body material PVC
End material PVC
O-RING material EPDM
Sphere seal ring material PTFE
Ball material PVC
O-ring material EPDM
Core seal bracket material PVC
Ring material PVC
Protection level IP67
Installation angle Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life.)
Design and manufacturing standard GB12237-89 AP16D
Flange standard JB79 GB9113 ANSI B16.5 JIS B2212
Structure length standard GB12221-89
Inspection standard JB/T 9092 API598

Figure and connection size

IP67 UPVC Ball Valve V Type Electric Actuated Ball Valve DIN Standard

Valve size L L1 L2 D1 D2 D3 D4 D5 H1 H2 W1 W2 Weight
kg
mm inch"
15 1/2" 112 60 16 13 20.1 20.3 31 45 200 72 196 145 4.4
20 3/4" 132 73 19 18 25.1 25.3 37 55 200 88 196 145 4.6
25 1" 144 78 22 23 32.1 32.3 44 66 200 105 196 145 4.7
32 1-1/4" 165 87 26 30 40.1 40.3 54 82 200 131 196 145 4.9
40 1-1/2" 171 92 31 38 50.1 50.3 65 98 200 156 196 145 5.1
50 2" 200 112 38 48 63.1 63.3 79 120 200 192 196 145 5.7
65 2-1/2" 273 136 44 61 75.1 75.3 92 140 200 224 196 145 7.2
80 3" 303 158 51 69 90.1 90.3 108 160 240 256 255 184 9.3
100 4" 326 176 61 99 110.1 110.4 146 225 240 360 255 184 12.1

Connection diagram

IP67 UPVC Ball Valve V Type Electric Actuated Ball Valve DIN Standard

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
