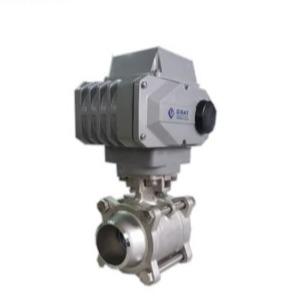

Miniature Electric Ball Valve

Name: Miniature Electric Ball Valve
Brand: GRAT
Price: 1 USD

Quality Miniature Electric Ball Valve wholesale

Brand Name : GRAT

Model Number : EDN10/15/20/25/32

Certification : CCC, ISO, CE

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 10000 Per Month

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Price : USD $100.00/ Piece

Certifications : CE/ISO/CNAS

Media : Oil

Material : Stainless Steel

Connection Form : Flange

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : V Type Ball Valve

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage, Water, Oil, Nitric Acid, Acetic Acid etc.

Operating Pressure : Pn16

Dead Zone : Less Than 0.2%

Body Material : SUS304\SUS316

Applicable Medium : Air-Conditioning System, Fire-Extinguishing System

Specification : CE, TUV, ISO, customerized

Structure : Flexible Ball Valve

Function : Relief Valve

Standard : DIN

Valve Size : Dn10/Dn15/Dn20/Dn25/Dn32

Modulation Accuracy : Less Than 0.3%

Action Mode : Switch to Cut off

SUS304\SUS316 : Casting Aluminum Alloy

HS Code : 8537109090

Contact Now

Miniature Electric Ball Valve

Product Description:

Miniature Electric Ball Valve/Flange/Ball Valve

Description:

This EZ series miniature ball valve with small volume is applied in the technical occasion where the installation

size and the volume are restricted. The series valves are successfully used in many industrial fields such as

air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments,

smoke sampling and so on.

Features:

* More than 100,000 operation life without fault, keep your system operating safely and reliably

* The valve with ultra-miniature volume weights 1.2Kg, whose height is less than 120mm, make it easy to be installed at any direction of the pipe.

* The valve owns a self-cleaning function, which can effectively guarantee the piping circulating.

* The simple channel, compared with the S channel structure of solenoid valve, has small flow resistance and no block.

* This valve has the self-lock function. (Self-keeping valve position).

* The valve with simple structure and reliable performance is widely instead of various solenoid valves with small diameter.

* With the output signal of fully open & fully shut.

Specification:

Valve size	DN10/DN15/DN20/DN25
Power supply	DC24V,AC110V,AC220V
Actuator torque/material	20Nm/Cast aluminum alloy
Temp.	0~120ºC
Ambient temp.	-30ºC-60ºC
Body rating	0.1~6.4MPa
Purpose	On-off
Action time	10-15s
Application condition	air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, smoke sampling
End connection	NPT,flange,weld,clamp
Seal type	Soft seat
Body material	SUS304,SUS316
Seal ring material	EPDM,PTFE
Protection level	IP67
Installation angle	Install it in any angle. (Prefer to horizontal or inclined installation to extend the service life.)

Size

Miniature Electric Ball Valve

DN	ΦD	L	Pipe thread	H1	H2	W1	W2
10	10	60	3/8″	152	38.8	128	79
15	15	75	1/2″	152	38.8	128	79
20	20	80	3/4″	159	45.4	128	79
25	25	90	1″	169	55.8	128	79

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
