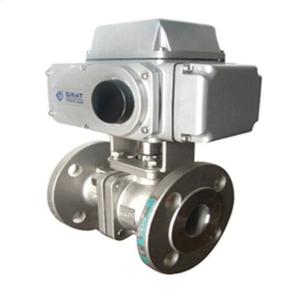

Stainless Steel Flange Connection Electrical Control Ball Valve

Name: Stainless Steel Flange Connection Electrical Control Ball Valve
Brand: GRAT
Price: 1 USD

Quality Stainless Steel Flange Connection Electrical Control Ball Valve wholesale

Brand Name : GRAT

Model Number : EDN15-250

Certification : IP67,CCC, ISO, CE,CNAS

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $150.00-170.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Media : Water

Material : Stainless Steel

Connection Form : Flange

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : V Type Ball Valve

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage

Valve Size : Dn15-200

Input Signal : 4-20mA

Control Signal : 4-20mA 0-5V

Seal Material : PTFE ,PPL, Metal Seal

Operating Pressure : Pn16, Pn25 - Pn40 - Pn64 -Pn100

Structure : Flexible Ball Valve

Function : Relief Valve

Standard : DIN

Body Material : A105\F304\F316\Wcb\Fzg1cr18ni9ti

Applicable Medium : Water, Air, Oil, and Corrosive Chemical Liquid

Body Connections : Wafer

Body Ratings : Pn1.0/Pn1.6MPa/Pn2.5MPa

Contact Now

Stainless Steel Flange Connection Electrical Control Ball Valve

Product Description:

Stainless Steel Flange Connection Electrical Control Ball Valve/IP67/V Type Ball Valve

Description:
Stainless Steel Flange Connection Electrical Control Ball Valve

Specification:

Power supply	AC220V
Body size	DN15-250
Medium Temp	-80°C~160°C(no congelation.)
Operating pressure	PN1.0~2.5(MPa)
Action mode	4-20mA Signal input feedback, 0-90° gyration
Action time	4~30S
Body connections	Flange
Body material	WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material	PTFE
Actuator material	Casting aluminum alloy
Applicable medium	Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid.

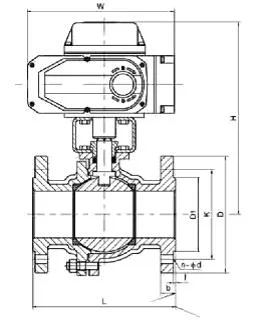

Installation size

Stainless Steel Flange Connection Electrical Control Ball Valve

Size MPa DN		C	D	D1	D2	Z-d	f	b
15	1.0	132	95	65	45	4-14	2	14
15	1.6	132	95	65	45	4-14	2	15
20	1.0	142	105	75	55	4-14	2	16
20	1.6	142	105	75	55	4-14	2	16
25	1.0	150	115	85	65	4-14	2	16
25	1.6	150	115	85	65	4-18	3	16
32	1.0	165	135	100	78	4-18	3	16
32	1.6	165	135	100	78	4-18	3	16
40	1.0	180	145	110	85	4-18	3	17
40	1.6	180	145	110	85	4-18	3	17
50	1.0	200	160	125	100	4-18	3	18
50	1.6	200	160	125	100	4-18	3	18
65	1.0	220	180	145	120	4-18	3	20
65	1.6	220	180	145	120	4-18	3	20
80	1.0	250	195	160	135	4-18	3	22
80	1.6	250	195	160	135	4-18	3	22
100	1.0	280	215	180	155	4-18	3	22
100	1.6	280	215	180	155	4-18	3	24
125	1.0	320	245	210	185	4-18	3	24
125	1.6	320	245	210	185	4-18	3	26
150	1.0	360	280	240	210	8-23	3	24
150	1.6	360	280	240	210	8-23	3	28
200	1.0	400	335	295	265	8-23	3	26
200	1.6	400	335	295	265	8-23	3	30
250	1.0	450	405	350	320	12-23	4	28
250	1.6	450	405	355	320	12-23	4	30

The material of the main parts

Part name

Body

Bonnet

Stuffing box

Gland ring

Seat

Packing

Spanner

Material

trademark

WCB

ZG1CrM0

1Cr18Ni9Ti

WCB

ZG1CrM0

1Cr18Ni9Ti

WCB

40Cr

1Cr18Ni9Ti

WCB

ZG1CrM0

1Cr18Ni9Ti

FEP

WCB

Applicable leading medium

Medium state	Medium Temp.	Medium pressure	Medium characteristics	Medium concentration	Medium name
Liquid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited	Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	unlimited
Mixture of liquid and solid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	<60%

Control Diagram

Stainless Steel Flange Connection Electrical Control Ball Valve

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
