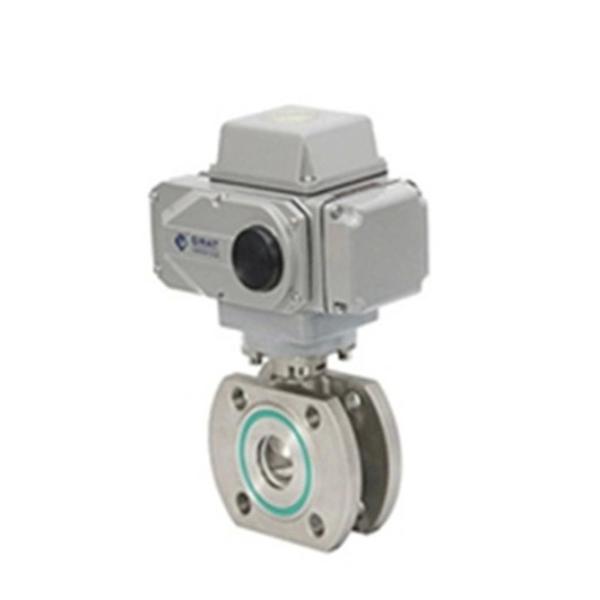

Vacuum Aspiration V-Notch Cut Control Ball Valve

Name: Vacuum Aspiration VNotch Cut Control Ball Valve
Brand: GRAT
Price: 1 USD

Quality Vacuum Aspiration V-Notch Cut Control Ball Valve wholesale

Brand Name : GRAT

Model Number : EV-SERIES

Certification : CCC, ISO, CE

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Price : USD $300.00-1000.00/ Piece

Supply Ability : 1000PCS/Month

Certifications : CE/ISO/CNAS

Media : Gas

Material : Stainless Steel

Connection Form : Flange

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : Fixed Ball Valve

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage, Household Usage

Structure : Flexible Ball Valve

Function : Relief Valve

Standard : Jb/T 9092 API598

Applicable Medium : Water, Oil, Gas

HS Code : 8537109090

Contact Now

Vacuum Aspiration V-Notch Cut Control Ball Valve

Product Description:

Vacuum Aspiration V-Notch Cut Control Ball Valve/Electric ball valve/V-type

Description:

The electric vacuum v-type ball valve is a kind of valve that control by the electric device to drive

the body to do the rotary movement and achieves the purpose of connecting or cutting off the air flow.

It has the characteristics of high flow conductivity and various connection forms and is a kind of

valve that can be used for both vacuum and pressure condition.

Suitable medium is air and weak corrosive gas dairy wine industry biological engineering food

pharmaceutical beverage chemical cosmetics and other fields often choose valve.And has been widely

used in the new energy industry and semiconductor industry.

Specification:

Suited range	16×105~6.7×10-4Pa (Thread connection ) 6×105~6.7×10-4Pa (Thread connection) 40×105~6.7×10-4Pa (Thread connection) 105~6.7×10-4 (Flange)
Leakage rate	≤6.7×10-5Pa.L/S
Medium Temp.	-30~+150ºC(PTFE) -30~+260ºC(PPL)
Action time	4S,10S,20S,30S
Installation mode	Install it in any angle
Power supply	Standard:AC220V/50HZ Optional:AC110V,DC24V
Feedback signal	Standard :Valve position indicator Optional:Intelligent(Control signal4-20mA)

Product parameters

Valve body caprod	Stainless steel
seal material	PTFE PPL. fluororubber

Electric Vacuum V-type Ball Valve CV value

Size	mm	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000	1200
Size	inch	2"	2.5"	3"	4"	5"	6"	8"	10"	12"	14"	16"	18"	20"	24"	28"	32"	36"	40"	48"
CV value Full 90°Open		135	220	302	600	1022	1579	3136	5340	8250	11917	16388	21705	27908	43116	49500	68250	86375	119750	187300

Size	DN	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500
Size	inch	1"	1.25"	1.5"	2"	2.5"	3"	4"	5"	6"	8"	10"	12"	14"	16"	18"	20"
CV value		36	56	94	152	262	358	540	906	1424	2176	3532	5732	8245	10651	12878	16343

Wire Connection Diagram

Vacuum Aspiration V-Notch Cut Control Ball Valve

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
