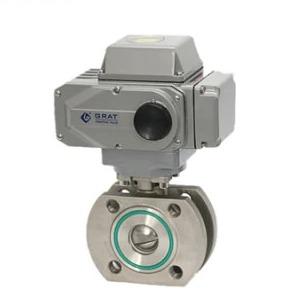

DN80 Stainless Steel Short Body Electric Actuator Drive Regulating Ball Valve

Name: DN80 Stainless Steel Short Body Electric Actuator Drive Regulating Ball Valve
Brand: GRAT
Price: 1 USD

Quality DN80 Stainless Steel Short Body Electric Actuator Drive Regulating Ball Valve wholesale

Brand Name : GRAT

Model Number : EV-000028

Certification : IP67,CCC, ISO, CE,CNAS

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $200.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Media : Water

Material : Stainless Steel

Connection Form : Flange

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : Fixed Ball Valve

Temperature : High Temperature

Application : Industrial Usage, Water Industrial Usage

Control Signal : 4-20mA

Output Signal : 4-20mA

Structure : Fixed Ball Valve

Function : Bypass-Valve

Standard : ISO

Size : ND15~Dn250

Voltage : AC220V/DC24V

HS Code : 8481804090

Contact Now

DN80 Stainless Steel Short Body Electric Actuator Drive Regulating Ball Valve

Product Description:

DN80 Stainless Steel Short Body Electric Actuator Drive Regulating Ball Valve/IP67/Fixed Ball Valve

Description:

Specification:

Power supply	AC220V
Body size	DN15-250
Medium Temp	-80°C~160°C(no congelation)
Operating pressure	PN1.0~2.5(MPa)
Action mode	4-20mA Signal input feedback, 0-90° gyration
Action time	4~30S
Body connections	Flange
Body material	WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material	PTFE
Actuator material	Casting aluminum alloy
Applicable medium	Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia,oxidant, reducing agent, corrosive chemical liquid

Installation size figure

DN80 Stainless Steel Short Body Electric Actuator Drive Regulating Ball Valve

DN	L	D	K	D1	N-Md	B	I	H1	H2	W1	W2
15	35	95	65	46	4-φM12	9	2	234	196	145	196
20	38	100	75	56	4-φM12	12	2	242	196	145	196
25	42	110	85	66	4-φM12	12.7	2	218	196	145	196
32	52	133	100	78	4-φM16	14	3	231	196	145	196
40	61	145	110	87	4-φM16	15	3	238	196	145	196
50	73	160	125	99	4-φM16	16.7	3	251	196	145	196
65	92	180	145	118	4-φM16	17.2	3	265	196	145	196
80	109	195	160	136	8-φM16	19	3	298	255	184	255
100	140	215	180	156	8-φM16	18.5	3	310	255	184	255

The material of the main parts

Part name	Body	Bonnet	Stuffing box	Gland ring	Seat	Packing	Spanner
Material trademark	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	WCB 40Cr ZG 1Cr18Ni9Ti	WCB ZG1CrM0 ZG 1Cr18Ni9Ti	FEP	FEP	WCB

Applicable channeling medium

Medium state	Medium Temp.	Medium pressure	Medium characteristics	Medium concentration	Medium name
Liquid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	Unlimited	Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	Unlimited
Mixture of liquid and solid	-80ºC~+160ºC	0~20kg/cm2	Strong corrosion, high scour sharpen	<60%

Control Diagram

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact sign

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
