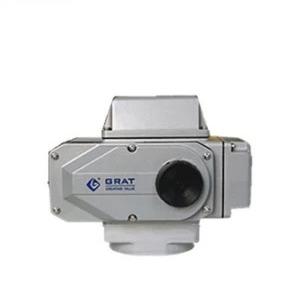

DC 24V Waterproof Intelligent Electric Valve Actuators IP67 Ordinary Temperature

  • 1
  • 2
  • 3

Brand Name : GRAT

Model Number : EA-50

Certification : IP68,CCC, ISO, CE, RoHS

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : To Be Negotiated

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Month

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Certifications : IP67/CCC/ISO/CE

Power Supply : DC24V

Power Source : Electric Power

Temperature : Low Temperature

Connection : Flange

Material : Stainless Steel

Action Angle : 180 Is The Maximum Gyration Angle

Control Signal : 4-20mA Switch Energy

Modulation Accuracy : 0.3%

Connections : Bracket and Shaft Sleeve Fix Actuator

Specification : 20-2000NM

HS Code : 8481804090

Contact Now

EA-Series DC 24V Waterproof Intelligent Adjustment Type Electric Valve Actuator

Product Description:

DC 24V Waterproof Intelligent Adjustment Type Electric Valve Actuator / IP67 /Ordinary Temperature

Description:
DC 24V Waterproof Intelligent Electric Valve Actuators IP67 Ordinary Temperature

Specification:

Type 20 50 100 200 400 600 1000 1500 2000
Characteristics
Output torque 20NM 50NM 100NM 200NM 400NM 600NM 1000NM 1500NM 2000NM
Action time(S) 10/20 4/10
20/60		 4/7
15/30/60		 6/15
30/60		 6/15
30/60		 45 15/30 48 60/75
Gyration angle 0-90°
0-360°		 0-90°
0-360°		 0-90°
0-360°		 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor power(W) AC220V 6 10 25 40 90 90 120 140 140
AC380V ------- 6 15 30 40 40 90 100 --------
DC24V 8 13 25 35 70 70 --------- --------- ----------
Rated current(A) AC220V 0.16 0.16 0.32 0.35 0.54 0.64 0.96 0.98 1.03
AC380V --------- 0.07 0.1 0.15 0.29 0.29 0.45 0.46 ---------
DC24V 0.7 1.28 2.03 3.57 5.13 3.04 --------- -------- --------
Weight(Kg) 1.2 2.5 3.5 8 8.5 9 17 18 20
Power AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V
Insulation resistance 100MΩ/500VDC
Anti-pressure level 1500VAC 1Min
Protection level IP67(It is no leakage in water about 20 meters deep)
Limited component Power-driven: Fully open and close, limit switch.
Manual: Mechanical stopper.
Protector Overheat protector(self-recovery)
Installation position Any direction from 0 to 360 degree
Electrical connection M20*1.5 Waterproof cable connection, power wire, signal wire
Ambient Temp. -30ºC--60ºC

Installation Diagram:

DC 24V Waterproof Intelligent Electric Valve Actuators IP67 Ordinary Temperature

Control Diagram:
DC 24V Waterproof Intelligent Electric Valve Actuators IP67 Ordinary Temperature

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signa

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
